  • 2006-2010 FIA LMP1

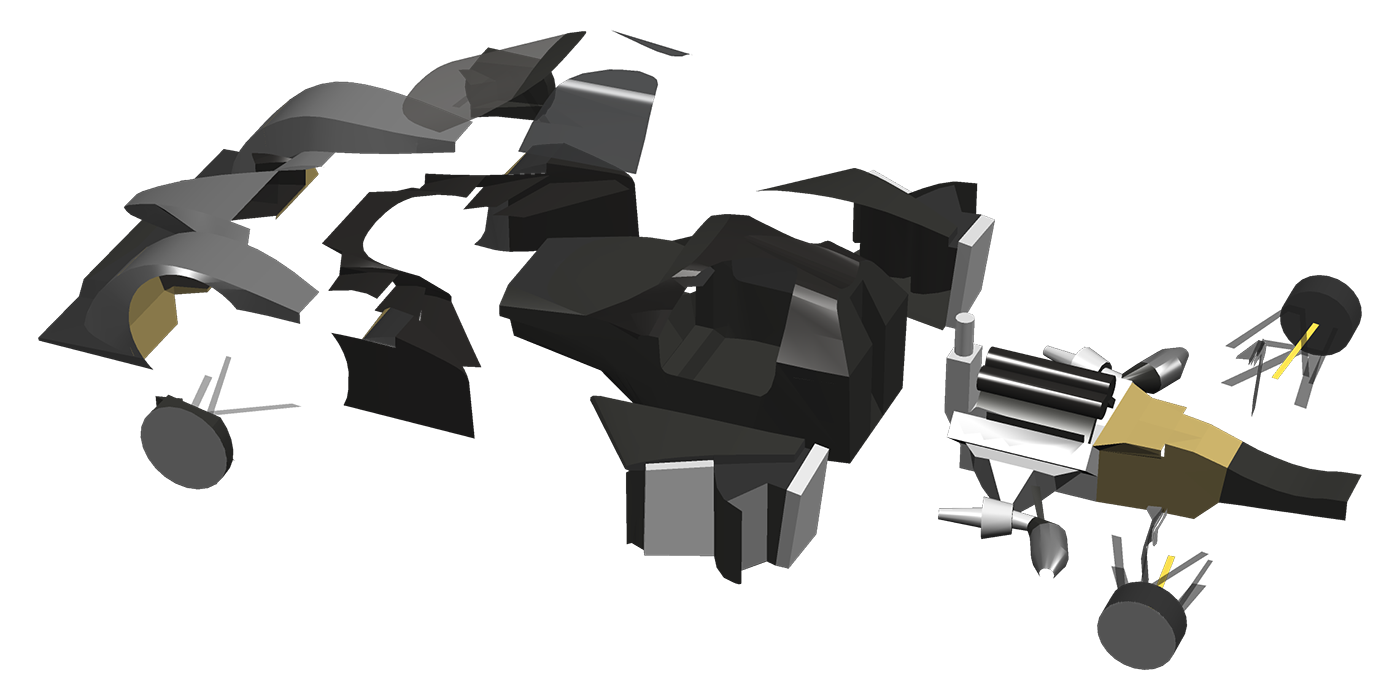

The Peugeot is being designed to build up as a series of individual modules, joining together into a full representation of the car's chassis and systems. This may be a bit ambitious for a paper model, but we'll see how it goes...

More »
XJR11 updates

The 908 is full of complex shapes, so design efforts have shifted to simplifying the structures wherever possible. This mostly involves looking around for opportunities to reduce the number of spline segments without sacrificing the overall form.

More »

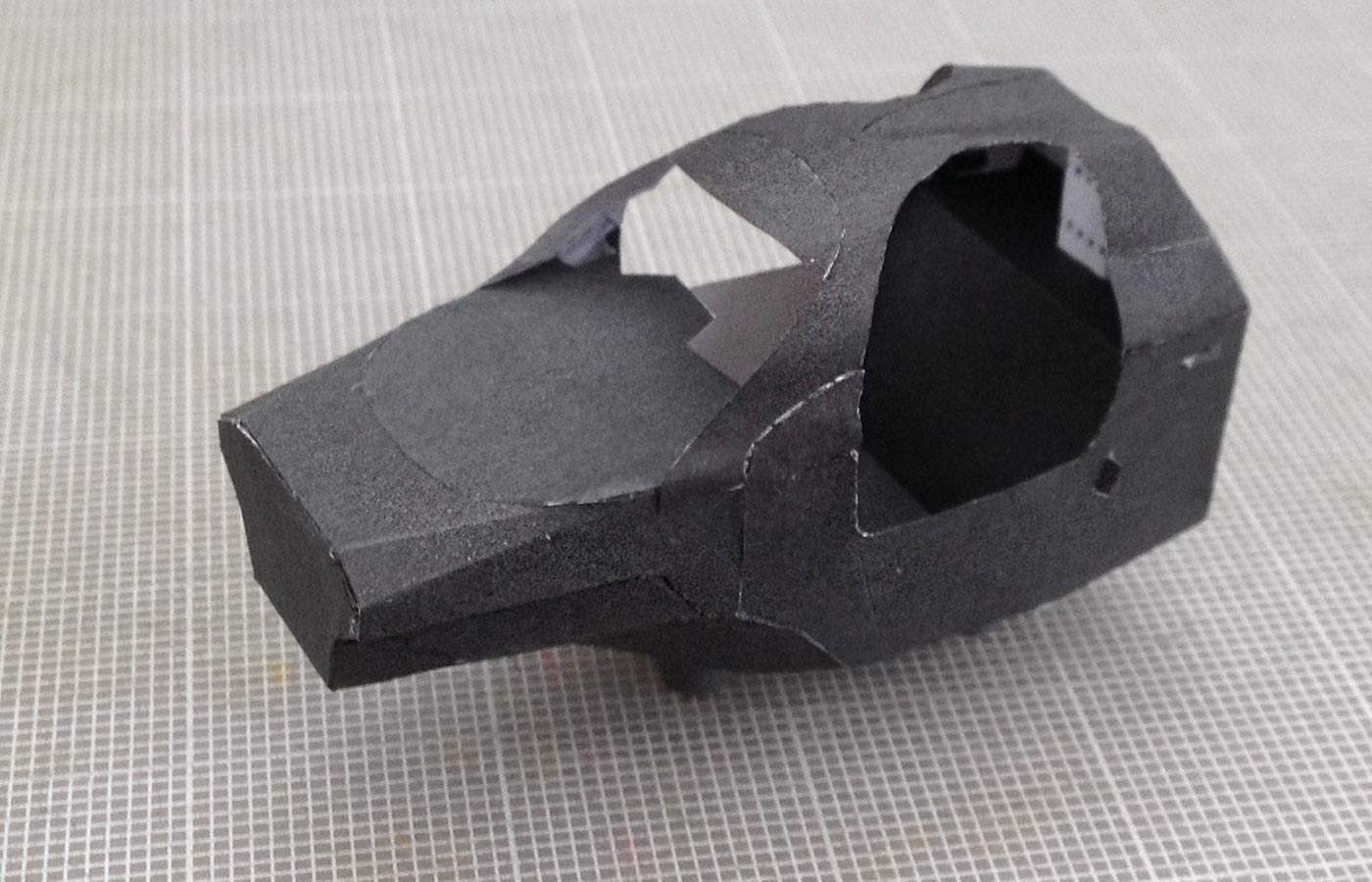

Rough work on the core chassis and tricky front bodywork build. Intent here is to make sure the shaping is right and to find out what improvements need to be made so the surfaces build easily.

More »

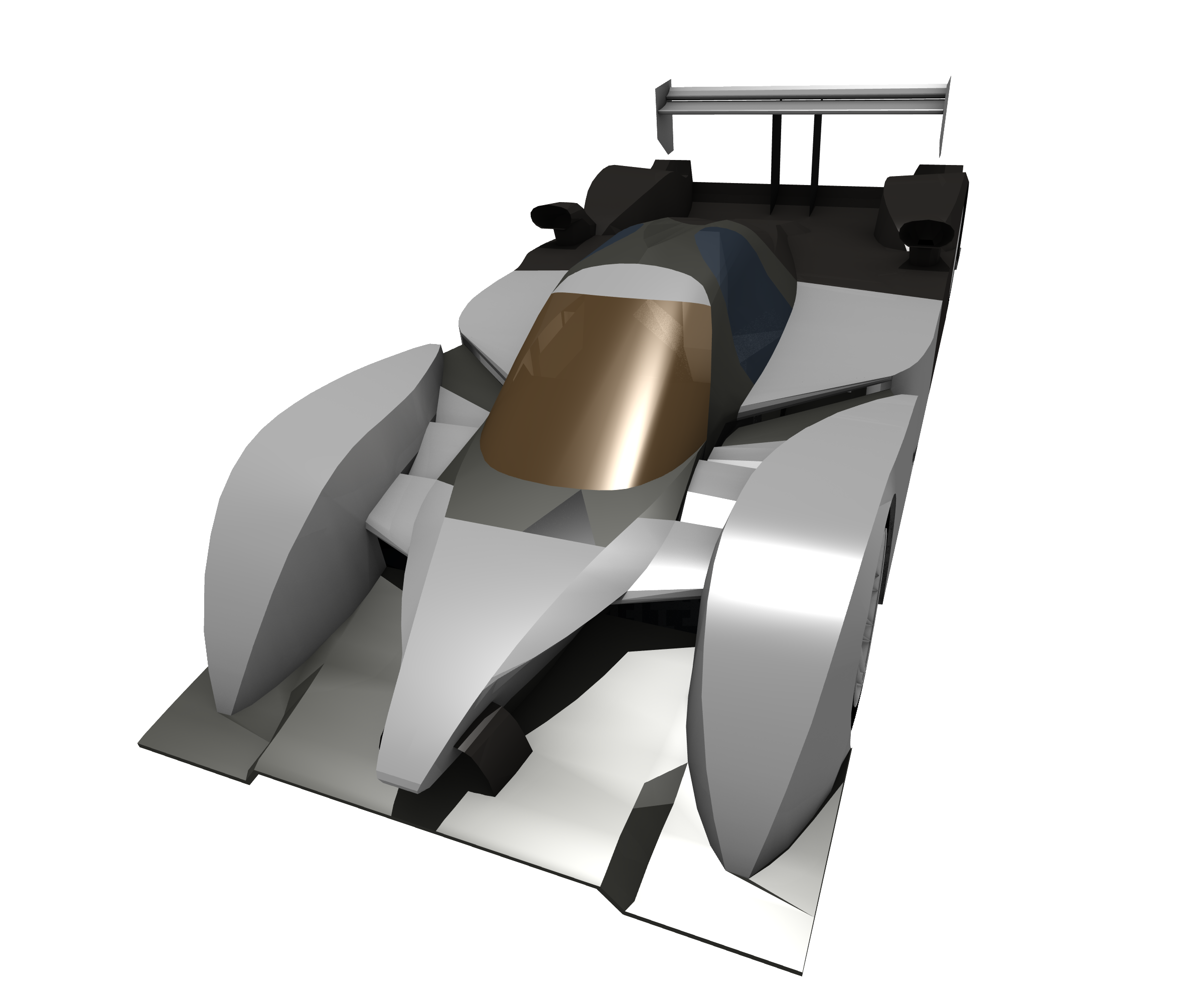

Quite happy with the Peugeot's proportions and shaping, so work turns to refinements to sub-assemblies - this is when all the dependencies between the parts begin to make adjustments more difficult.

More »

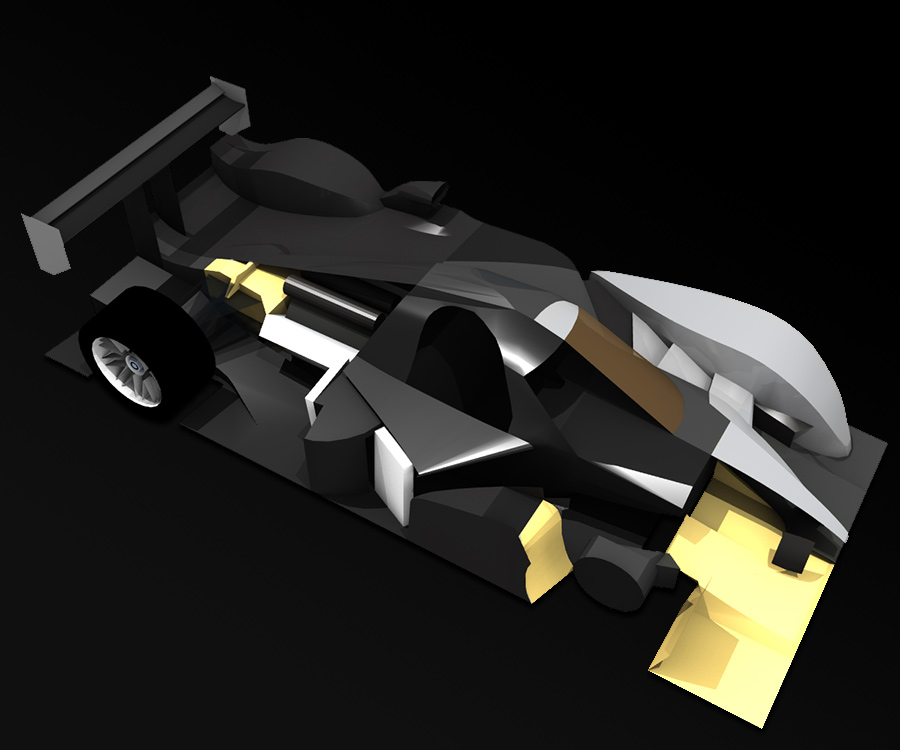

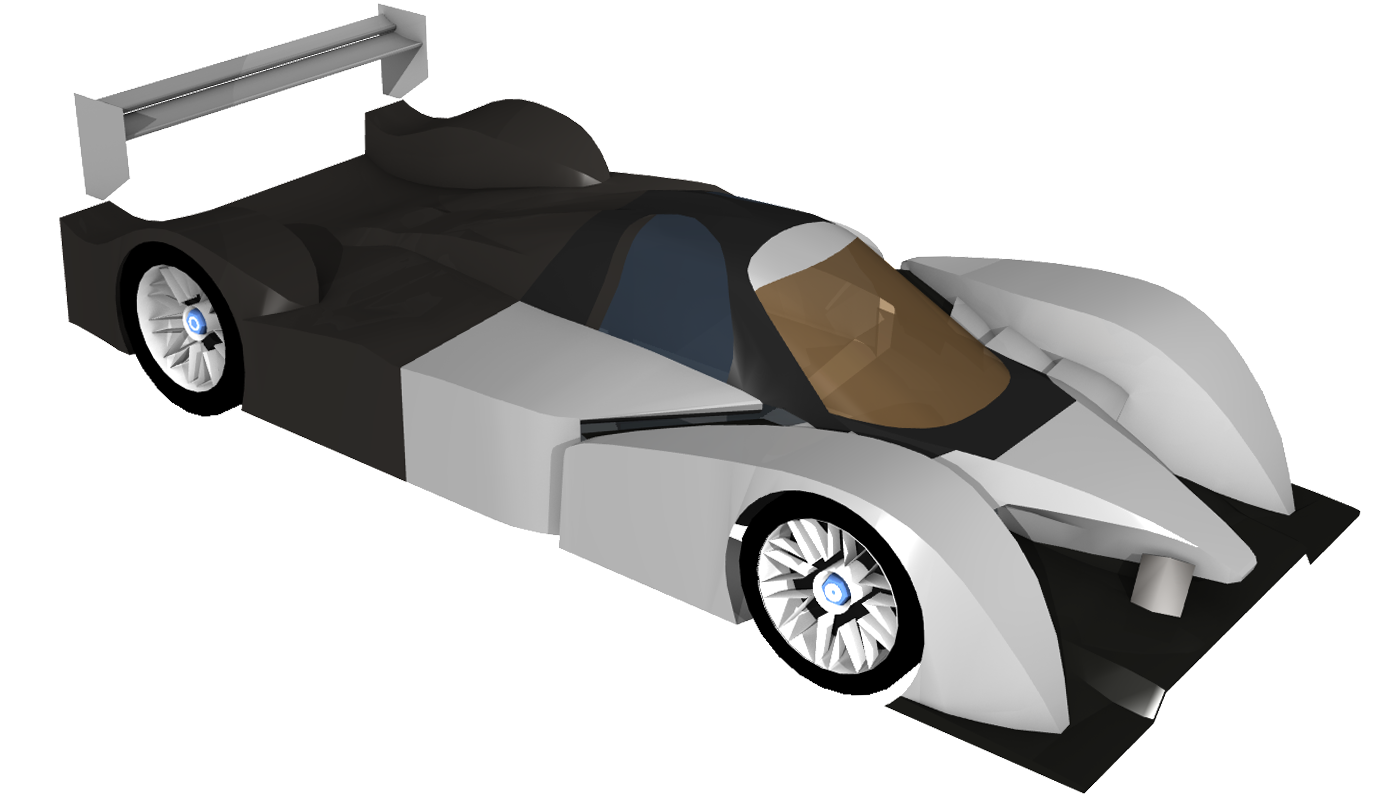

The list of Peugeot to-dos is growing shorter... Got the body to about 90% sorted with lots of nudging and smoothing, and worked up the front tusks and snorkel intakes. Need to tackle the interior bits next, then I'll do some renders of the bare chassis. :)

More »

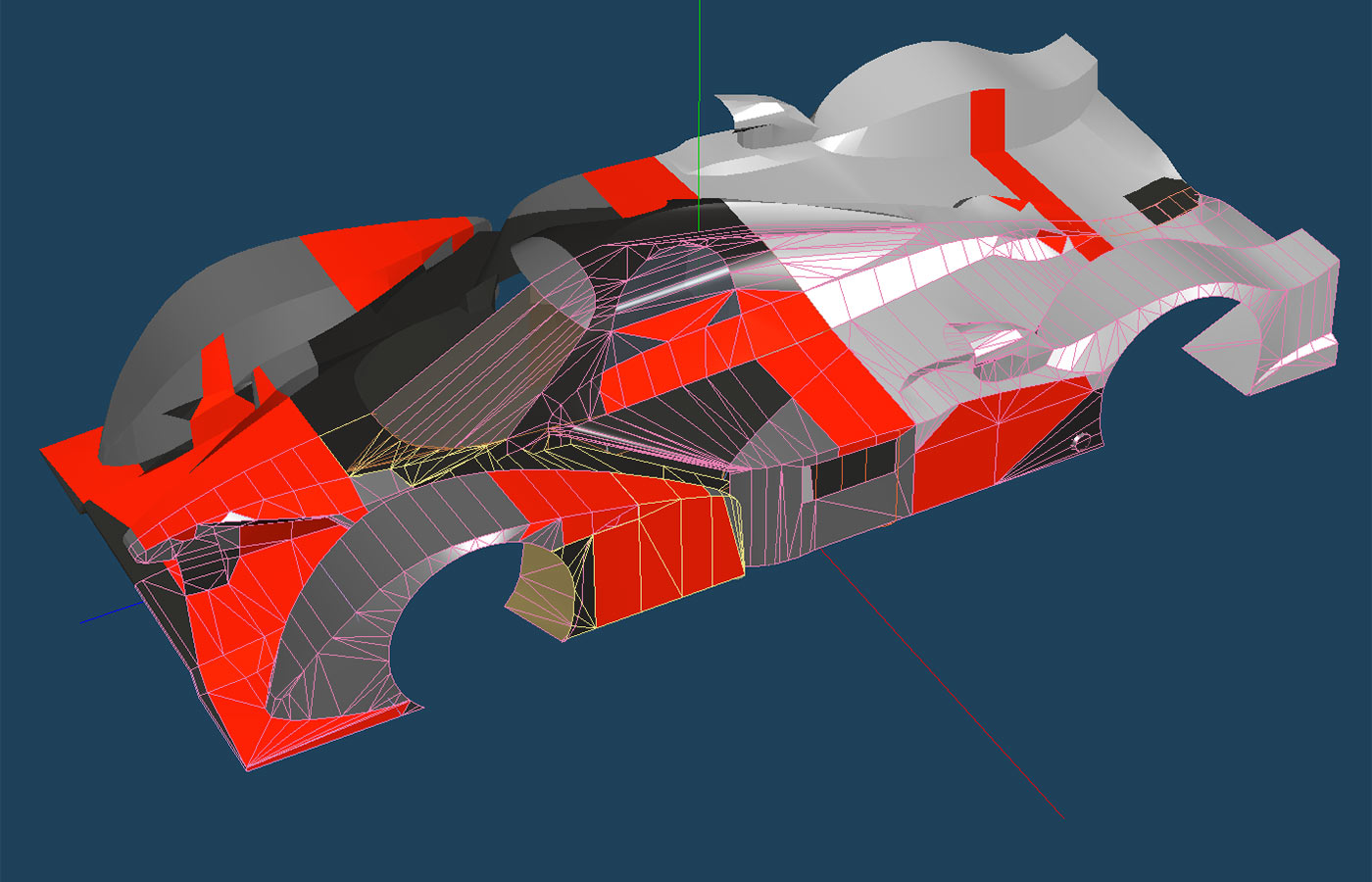

After some extensive research, I've got the lineage of this car's development over its 4 seasons mapped out (2007-2010, inclusive). While there were many small changes across the car, the most visible external evolution over that time was focussed on the rear panels and the shaping of the rear fenders. This means the forward bodywork and chassis can carry through all versions... Le Mans low-drag nose being a notable exception.

The 2009/2010 version with the ACO's narrow-wing regulations is modeled here.

More »

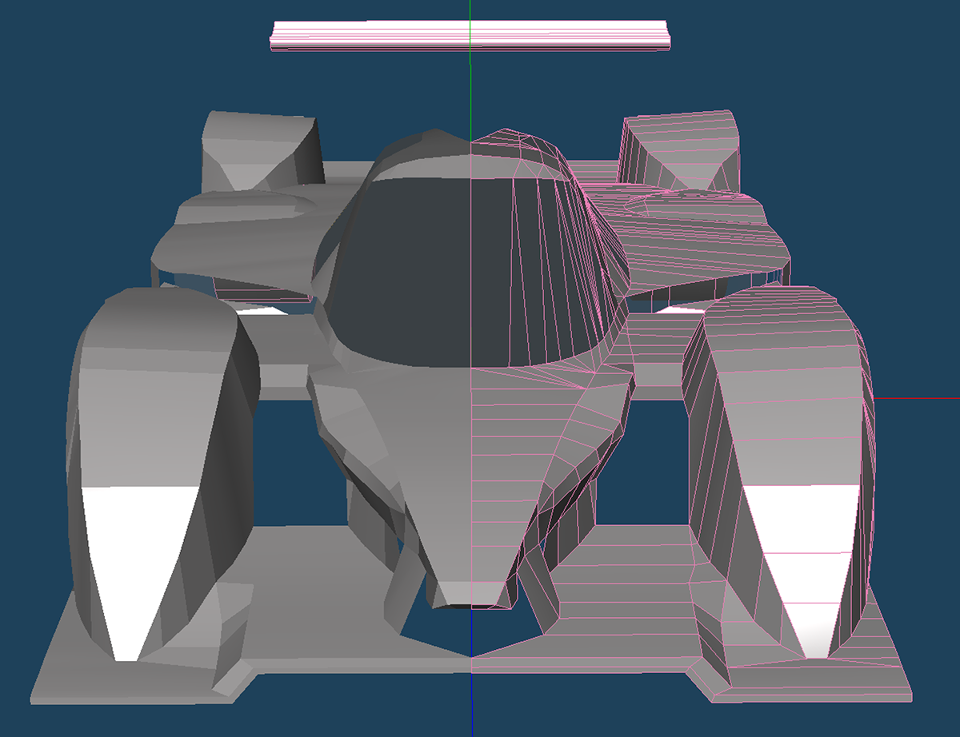

Nailed down the technical source drawings for the Peugeot 908 (2008~2010) and started CAD work over the last week or so. Much more smoothing and detail to come, but off to a solid start.
